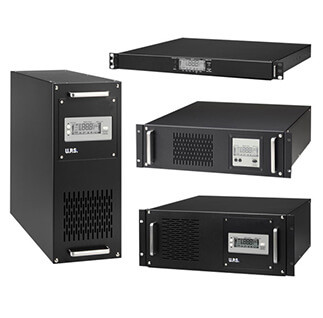

UBR 1.1KVA ~ 4KVA

UBR 1.1KVA ~ 4KVAUBR 1.1KVA ~ 4KVA

Availability： In stock

Model number： UBR-1100KVA-4000KVA

Inquiry
Quantity
    Share

    Extra Smart UPS "Tower Long-Run Ver. " UBT-L 800VA ~ 4000VA

    Feature :
    • Smart backup time estimation
    • Adjustable voltage sensitivity, voltage-transfer points, & charging voltage.
    • Generator compatible
    • Hot-swappable batteries
    • Automatic restart of load after UPS shutdown
    • Smart AVR function (Two buck / boost modes)
    • Cold-start capable
    • Audible alarm
    • Network manageable (SNMP optional)
    • Full function of LCD display (LED display optional)
    • Smart battery management
    • Intelligent double stages of charging control
    Specifications:
    Output
     115V Models230V Models
    Power Levels crated
    at nominal inputs    		1100VA,  660W
    1650VA, 1000W
    2200VA, 1350W
    3300VA, 2000W
    4000VA, 2600W
    Output Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Voltage WaveformSine wave
    Crest Factor3:1
    Output Frequency
    (Synchronized to Mains)    		Auto Select for 50/60Hz
    47Hz ~ 55Hz for 50Hz nominal
    56Hz ~ 65Hz for 60Hz nominal
    Regulation (Nominal)±5% typical of nominal voltage  (optional at ±8% AVR for wide I/P up to ±35%)
    Regulation (Batt. mode)±3% of selected output voltage  (adjustable with the remote set-up software)
    Transfer timeBlackout 3ms typical
    Brownout 1ms typical
    Battery mode to Normal mode：1ms typical
    Over current protectionOver load alarm level 100% ~ 120%
    Over load shutdown level 120% ~ 190%
    (Adjustable with the remote set-up software)
    Input
     115V Models230V Models
    Nominal Voltage100V/110V/115V/120V Selectable200V/220V/230V/240V Selectable
    Input Frequency47Hz ~ 65Hz, 50/60Hz auto-sensing
    Efficiency (Normal mode)97%
    Noise FilteringFull time EMI/RFI filtering
    Over current protection1100VA：by AC fuse
    1650VA ~ 4000VA：by re-settable over current protector    		1100VA ~ 2200VA：by AC fuse
    3300VA ~ 4000VA：by re-settable over current protector
    Voltage Range-20% ~ +24% for selected nominal voltage.
    -29% ~ +33% adjustable with the remote set-up software
    AVR Range
    (2 Bucks, 2 Boosts)    		Enhanced Buck: +15% of selected nominal voltage
    Buck mode: +5% of selected nominal voltage
    Boost mode: -5% of selected nominal voltage
    Enhanced Boost: -12.5% of selected nominal voltage
    Surge Protection1100VA ~ 1650VA：216 Joules
    2200VA ~ 4000VA：324 Joules    		1100VA ~ 1650VA：220 Joules
    2200VA ~ 3300VA：440 Joules
    4000VA         ：660 Joules
    Battery
    Battery typeMaintenance–free sealed, valve-regulated, Lead-Acid
    1100VA ~ 3300VA：12V, 7Ah
    4000VA         ：12V, 9Ah
    Voltage1100VA：24Vdc
    1650VA：36Vdc
    2200VA：48Vdc
    3300VA/4000VA：72Vdc
    Typical backup time at half-load1100VA ~ 3300VA：14 minutes
    4000VA         ：12 minutes
    Typical backup time at full load1100VA ~ 3300VA：4.5 minutes
    4000VA         ：4 minutes
    Charging methodSmart pulse charging with two charging modes.
    Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
    Charging timeLess than 3 hours to 90% at normal line and normal temperature.
    Average charging current2.5A
    Average charging voltage for each batteryQuick charging mode：14V maximum.
    Trickle charging mode：13.2V ~13.9V adjustable with the remote set-up software.
    ProtectionOver current protection (SCR control)
    Over charging voltage protection (SCR control)
    Thermal protection (CPU control)

    When temperature inside UPS is over 45℃, charger will stop charging for 2.5 minutes followed by an 1.5 minutes charging.  The cycle will be repeated until the temperature is lower than 44℃.
    MonitoringSmart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days.
    Communications & Management
    Standard Interface portUPSilon2000 compatible.
    1100VA ~ 4000VA：RS232, USB, SNMP, RJ45  (Surge Protection)
    Optional Interface portDB9
    Control panelLCD or LED Selectable
    Audible alarmAlarm on battery：Low battery & Battery over voltage Alarm on abnormal operation：Over load, Short-circuit, & Over heat
    EBT (Estimation of BackupTime) systemSupport for LCD display
    Green mode function (Auto-shutdown during blackout)1% to 14% of full load (adjustable with the remote set-up software)
    The default setting is OFF.
    Environmental and Safety
    Operating Temp.Up to 1500 meters：0℃ to 40℃ (32℉ to 104℉)
    Transit/storage Temp.-15℃ to 55℃ (5℉ to 131℉)
    Relative Humidity5 - 95% non condensing
    Operating Altitude0 ~ 3000 meters
    Audible noise≦40 dBA
    Safety MarkingsCE
    EMCClass B, EN50091-2, FCC part15, IEC1000-2-2
    Quality control systemISO 9001
    Physical
    Dimensions:
    Unit / Shipping
    (H x D)/H×D×W (cm)    		1100VA ~ 2200VA：2u x 47cm / 22.5 x 61 x 59(cm)
    3000VA ~ 4000VA：3u x 47cm / 27  x 62 x 58(cm)
    Weight:
    Net / Gross (kg)    		1100VA：18 / 20 (kg)
    1650VA：23.5 / 25.5 (kg)
    2200VA：28 / 30 (kg)
    3300VA：41 / 43 (kg)
    4000VA：42 / 44 (kg)
    Packing Export carton for each unit, 14~21 units per pallet
