Standard UKT 6KVA ~ 20KVA

Standard UKT 6KVA ~ 20KVA

Availability： In stock

Model number： UKT-6KVA-20KVA

Inquiry
Quantity
    Share

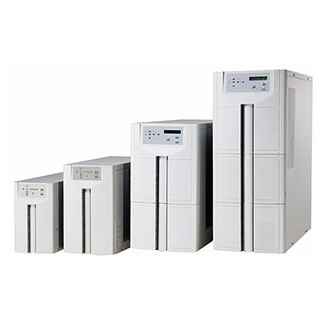

    ONLINE UPS " Tower Ver. " UKT 6KVA ~ 20KVA.

    Feature :
    • Online double conversion
    • High reliability DSP control
    • Advanced PFC technology
    • Wide input voltage range
    • DC cold start function
    • Intelligent fan speed control
    • Full protection function
    • Intelligent RS232 /RS485 Communication Port
    • SNMP adapter or Dry contacts (optional)
    • Advanced no-master-slave parallel technology (optional)
    Specifications:
     UKT6000 /UKT6000LUKT1110 /UKT1110LUKT3110UKT3115UKT3120
    　INPUT
    Input power factor≧0.99≧0.95
    Input Voltage Range(V)120-276:
    50% load: 120-276
    75% load: 150-276
    100% load: 176-276    		208-478:
    50% load: 208-478
    75% load: 260-478
    100% load:305-478
    PhaseSingle phase(L,N,G)Three phase in single Phase out(L1,L2,L3,N,G)
    Bypass range(V)180-255
    Frequency range(Hz)45-55
    Battery voltage(Vdc)120240
    　OUTPUT
    Output Power(KVA/KW)6/4.2'10/715/10.520/14
    Output Voltage(VAC)220/230/240 ±2%
    Output frequency(Hz)50/60 ±1%(battery mode)
    Output wave formPure sine wave
    THDTHD ﹤3% (Linear load)
    Switch time(ms)0
    Efficiency88%(linear load)90%(linear load)
    Over load(in main)105%~130% load 1min.
    131%~150% load 30S.
    ﹥150% load 300mS    		105%~125% load 10 mins.
    126%~150% load 1min
    ﹥150% load1S
    Crest Factor'3:1
    　OTHER FEATURES
    DC cold startYes
    DisplayLCD:Input/Output voltage, battery voltage, load capacity, UPS working status.
    LED Indicator:Utility, Battery, Bypass, Fault

    CommunicationRS232 portRS232/RS485 port
    SNMP adapter(Optional)Network Monitor through SNMP adapter
    ProtectionProtection for input over voltage, input low voltage, low battery, over load,fault, short circuit, over temperature.
    AlarmBattery low, main abnormal, UPS overload, fault
    Noise(dB)﹤60
    Dimension(WxDXH(mm))253x637x700 / 253x637x500253x637x700
    Weight(Kg)95/30100/34355255
