Standard 6KVA~60KVA

Standard 6KVA~60KVA

Availability： In stock

Model number： 6KVA-60KVA

Inquiry
Quantity
    Share

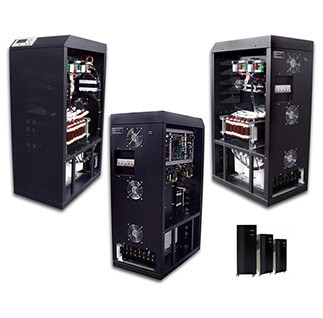

    ONLINE UPS " Tower Ver. " S & D Series.

    Feature :
    • Superior load It is completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable.
    • Perfect protection It has output over/low load protection, Input surge protection, phase sequence protection; battery over charge/discharge protection; short circuit protection; over-temperature protection and so on, as well as alarming function.
    • High dynamic performance Adopting kinds of feedback control such as instantaneous control method and valid date, it achieves high dynamic adjustment and reduces the output THD.
    • Optional input harmonic filter effectively restrain the input THD; Raise UPS input power factor, reduce the input THD current.
    • Optional battery detecting module Able to test the single parameters, and display on the LCD. If battery failure it will alarm.
    • Characteristic setting
    Specifications:
    Technical Specifications Of "S" & "D" Series UPS
     Single in and single outThree ins and single out
    MODES1KS2KS3KS6KS10KS15KS20KD6KD10KD15KD20KD30KD40KD50KD60K
    CAPACITY (KW)1KVA/0.82KVA/1.63KVA/2.46KVA/4.810KVA/815KVA/1220KVA/166KVA/4.810KVA/815KVA/1220KVA/1630KVA/2440KVA/3250KVA/4060KVA/48
    VOLTAGESingle phase with two lines + ground wire , 220V ± 25%Three phase with four  lines + ground   wire , 380V ± 25%
    BATTERY VOLTAGE96V192V192V / 384V384V
    NOISE≤ 52 dB ( distance 1m )≤ 60 dB ( distance 1m )≤ 60 dB ( distance 1m )≤ 65 dB ( distance 1m )
    SIZW ( W×D×H mm )260 × 545 × 590343 × 630 × 725390 × 620 × 1100900 × 660 × 1470
    WEIGHT ( Kg )                 (excluding the battery)30404560105130160130165190210400450530620
    INPUTFREQUENCY50 Hz / 60 Hz ± 10%
    POWER ACTOR≥ 83%
    OUTPUTVOLTAGE220V ± 0.5%
    VOLTAGE REGULATIONStable voltage  ± 1% , dynamic voltage  ± 2% , ( 0 - 100% load fluctuation 20 ms )
    FREQUENCY STABLENESS50 Hz / 60 Hz ± 0.5%
    FREQUENCY TORSION RATELess than 1 Hz / second
    INSTANT LOAD STATUS± 0.4% ( 100% instant load fluctuation )
    HARMONIC DISTORTIONFor linear load , less than 3% ( full load ) , total rectifying harmonics  is less than 5%
    OVERLOAD CAPACITANCE110%
    WAVE FORMSine wave
    EFFICIENCYINPUT AC TO OUTPUT ACAbove 95%
    TRANSFER TIMEMAINS POWER SUPPLY FAILS OR RESTORES0 second
    TURNS FROM UPS TO BYPASSless than 4 ms
    BATTERYTYPELead - acid sealed , maintenance  - free
    CHARGING TIMEAfter it is fully charged  it can be filled  to 90% of the total Capacity after it is charged  for 8 hours
    WARNING SOUNDBATTERY DISCHARGEIf the main power fails , it buzzes once every 4 seconds
    If the battery is low , it buzzes once every 1 second
     Single in and single outThree ins and single out
    MODES1KS2KS3KS6KS10KS15KS20KD6KD10KD15KD20KD30KD40KD50KD60K
    WARNING SOUNDBATTERY      DISCHARGEIf the battery stops discharging , it buzzes continuously
    IN FAULT STATUSContinuously buzzes
    INTERNAL PROTECTIN G
    DEVICE LCD PANEL    		BATTERYAutomatically shuts down the machine when the battery power is low, it has no fuse switch protection.
    OVERLOADAfter the overload  (100～110%) lasts for 3 seconds ,it automatically jumps to BYPASS.
    It can automatically restore normal  state.
    TEMPERATURE IS TOO HIGHIf the internal  temperature of the UPS>85°C, it will Automatically jump  to BYPASS.
    OUTPUT SHORT CIRCUITLimits Current, automatically shuts down the machine, without Fuse switch protection.
    UPS IS ABNORMALAutomatically jumps  to BYPASS mode  and starts direct mains power supply.
    NOISE FILTER10~10KHz at 40 db; 100KHz~100MHz at 70 db
    LCD DISPLAYIndicating input and output voltage,  frequency;  battery voltage  and output power (%);Temperature
    BATTERY BVLOne LED, it glows when the battery voltage  is low.
    OUTSIDE ENVIRONM ENTTEMPERATURE- 10 ~ 50℃
    RELATIVE HUMIDITY0%~93% (No condensation)
    OPERATION CONDITIONLower than 3000 meters above sea level (altitude)
