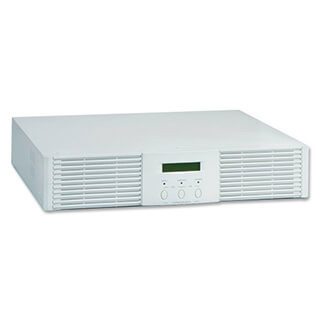

Standard UHR 1KVA ~ 3KVA

Standard UHR 1KVA ~ 3KVA

Availability： In stock

Model number： UHR-1KVA-3KVA

Inquiry
Quantity
    Share

    ONLINE UPS " Rack Mount Ver. " UHR 1KVA ~ 3KVA.

    Feature :
    • Multiple Microprocessor design base
    • Detachable control panel with LCD
    • Unity input power factor and wide input range
    • Robust design with output transformer
    • True sine-wave double conversion on-line UPS
    • DC start and automatic self-diagnostic function
    • RS232 communication port and built-in SNMP slot
    • High efficiency design to save electricity
    • Low heat dissipation in long term operation
    • Designed to operate under harsh environment
    • Enhanced protections against lighting surges, disturbances etc..
    Specifications:
    Model (LCD Series)UHT-103/
    UHR-103    		UHT-203/
    UHR-203    		UHT-303/
    UHR-303    		UHT-603HUHT-104HUHT-3104HUHT-3154HUHT -3204H
    Model (LED Series)UHT-103L/
    UHR-103L    		UHT-203L/
    UHR-203L    		UHT-303L/ UHR-303LUHT-603HLUHT104LUHT-3104LUHT-3154LUHT-3204L
    InputCapacity1KVA/700W2KVA/1.4KW3KVA/2.1KW6KVA/4.2KW10KVA/7KW15kVA/10.5KW20KVA/14KW
    PhaseSingle Phase3 Phase
    Nominal Voltage220Vac/110Vac1P2W 220Vac3P4W 380Vac
    Voltage Range160-300Vac(70%-100%load),140-300Vac (50%-70% load), 118-300Vac (0%-50% load)176-276Vac ±3Vac304-478 VAC
    Frequency50Hz / 60Hz ± 4Hz
    Power Factor≥0.95≥0.97≥0.98≥0.95
    OutputVoltage220VAC ± 2% (230V or 240V re-settable via LCD panel) )                                    110V ± 2% (100V,115V or 120V re-settable via LCD panel )220VAC ± 1% （230V or 240V re-settable via LCD panel）
    FrequencySynchronized ( Line mode)； 50Hz or 60Hz +/-0.5%  (Battery mode)
    Wave-formTrue Sine wave
    DistortionTower≤3% (linear load)≤4% (linear load)≤4% (linear load)
    ≤ 6% non-linear load)≤7% non-linear load)≤7% non-linear load)
    Rack≤4% (linear load) ,≤7% non-linear load)N/A
    Overload Capacity125%~150%: 30 sec.,  .>150% : 200ms105%～130%: 10 min.,  >130%: 1min
    Crest Ratio03:01
    BatteryDC Voltage36V96V240V
    Capacity12V / 7Ah×3 pcs12V / 7Ah×8pcs12V/ 7Ah×20pcs12V/Depend on the capacity of external batteries
    9Ah×20pcs
    Back-up Time＞5min.＞9min.＞ 5min.＞8 min.＞5 min.Depend on the capacity of external batteries
    ChargerBuilt-In /Option1Amp/8Amp1Amp/8Amp2Amp/4.2Amp (2 steps)4.2 Amp( 2 Steps)
    Recharging Time5 hrs to 90%7 hrs to 90%8 hrs to 90%Depend on the capacity of external batteries
    BypassAutomaticOverload or UPS fault
    By settingVoltage Range: 176~256V±20V (Re-settable via LCD panel)NA
    Transfer Time0 ms( 2.5ms inverter to bypass)0 ms (AC to DC & inverter to bypass)
    IndicatorLCD (Series)UPS status, I/P&O/P Voltage & Frequency ,Load %, Battery Voltage, Battery Capacity % ,Temperature, Model Spec., Event Log.
    LED: Normal (Green), Warning (Yellow), Fault (Red)
    LED (Series)Normal (Green), Bypass(Yellow), Battery Low (Yellow), Inverter (Green), Load% (5 LEDs), Battery % (5 LEDs), Fault (Red)
    OutletTowerNEMAx3pcs or  IEC320x4pcsNEMAx6pcs or IEC320x6pcsNEMAx6pcs or
    IEC320x3+ TBx1    		Terminal Blocks
    RackNEMAx4pcs or  IEC320x4pcsNEMAx2+TBx1 or IEC320x4pcsNEMAx2+TBx1 or IEC320x1+TBx1Terminal Blocks
    Audible AlarmBattery Mode           Beeping every 4 seconds (re-settable)
    Battery LowBeeping every seconds
    Overload  Beeping twice per second
    FaultBeeping Continuously
    InterfaceRS-232 InterfaceUPSilon2000 monitoring software for Windows all, Unix systems and Novell.
    Multi-Interface SlotSNMP card, AS 400, Dry Contact, USB Selectable
    NetworkSurge ProtectionRJ45 I/O port for Network or RJ 11 for Fax / ModemN/A
    ParallelN/AAvailable (Option)
    EnvironmentTemperature0～40°C；32～104°F
    Humidity0-95% non-condensing
    Acoustic Noise＜45 dBA ( at 1M )＜50 dBA ( at 1 M)＜55 dBA (at 1 M)＜60 dBA (at 1 M)
    PhysicalWeight (w/o Batt.） 6.5 kgs (Tower)
    8.0 kgs (Rack)    		13.5kgs (Tower)   9.5 kgs (Rack) 14.5kgs (Tower)  10.5kgs (Rack)35 kgs38kgs38.5kgs55kgs55kgs
    Weight (w/ Batt.)15 kgs (Tower)
    15.5 kgs (Rack)    		34 kgs (Tower)    N/A   (Rack)35 kgs (Tower)    N/A   (Rack)90 kgs93kgs---------
    Dim.
    W*H*D        		Tower160 x 220 x 400 mm200 x 352 x 450 mm260 x 717 x 570mm
    Rack440 x 88 x 465mm (Rack)482.6 x 176 (4U) x 600mm (Rack)NA
    ColorWhite or Black
