Long-Run UKR-L 1KVA ~ 3KVA

Long-Run UKR-L 1KVA ~ 3KVA

Availability： In stock

Model number： Long-Run-UKR-L-1KVA-3KVA

Inquiry
Quantity
    Share

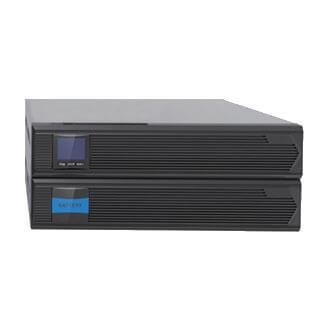

    UKR Plus Series Online UPS 1~3kVA

    Feature :

    • Online double conversion
    • Rack and tower in universal body
    • High input power factor
    • Wide input voltage range
    • Compact and light weight
    • High reliability and performance
    • Full protection function
    • Automatic bypass
    • Intelligent RS232 communication port
    • UPS management software (optional)
    • External SNMP or USB or Dry contacts (optional)
    • External battery bank (optional)
    Specifications:
    MODELUKR1000UKR1000LUKR2000UKR2000LUKR3000UKR3000L
    　INPUT
    Voltage (Vac)120-295
    Frequency (Hz)50/60± 10% (50/60Hz auto-sensing)
    Power Factor ≧ 0.99
    THDi< 5%
    　OUTPUT
    Capacity(VA)100020003000
    AC/AC Efficiency92%93%94%
    Power Factor 0.9 (1.0 optional)
    Voltage(Vac)208/220/230/240±1% (settable on display panel)
    Frequency(Hz)50/60±0.1 (battery mode)
    THDvTHD < 3% (linear load); THD < 5% (nonlinear load)
    Transfer Time0
    Overload101%~115% for 1 min, 116%~133% for 1s, above 134% for 200ms
    　BATTERY
    Voltage(Vdc)243648727296
    BATT Type 2x9Ah12VExternal4x9Ah12VExternal6x9Ah12VExternal
    Charger Current (A) Max.141414
    　OTHER
    Communication InterfaceRS232 + UPS + EPO (RS485,Dry contact and SNMP adapter are optional)
    DisplayLCD
    AlarmLow battery,abnormal AC input,UPS failure,etc.
    ProtectionLow battery, overload, short-circuit and over temperature, etc.
    Noise(dB)< 50< 55
    Working Temperature-5 ~ 40℃
    Relative Humidity0 ~ 95%, No condensation
    Dimension(WxDxH) mm438x420x2U438x420x2U(UPS)+
    438x420x2U
    (Battery pack)    		438x420x2U438x420x2U(UPS)+
    438x420x2U
    (Battery pack)    		438x420x2U
    Weight (kg)11.578+149.98.5+2010
