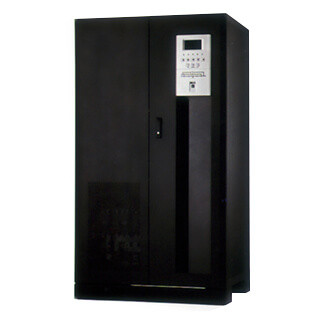

10KVA~400KVA
UTP-33 Series（10-400KVA）
Feature :
- Online double conversion
- IGBT inverter and output isolation transformer
- 3 phases UPS allow 100% unbalance load
- Fully DSP control, high reliability and performance
- Wide input voltage range
- DC cold start function
- Advanced battery charging management
- Intelligent fan speed control
- ECO mode and EPO function.
- Intelligent RS232 /RS485 communication port
- SNMP adapter (optional)
- Advanced no-master-slave parallel technology (optional)
- Intelligent battery monitor system - MMBM (optional)
- 12 Pulse rectifier (optional)
- Bypass isolation transformer (optional)
- Specification is subject to change without prior notice.
- 208V, 220V systems are available and with some different parameters
Specifications:
| MODEL | UTP3310 | UTP3320 | UTP3330 | UTP3340 | UTP3350 | UTP3360 | UTP3380 | UTP33100 | UTP33120 | UTP33160 | UTP33200 | UTP33300 | UTP33400 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INPUT | Voltage(Vac) | 380/400±20% or 208/220 ±20% (±25% optional) | ||||||||||||
| Rectifier Frequency | 40～65 | |||||||||||||
| SYNC | 50/60±5% (±10% optional) | |||||||||||||
| Frequency Tracking | ||||||||||||||
| Phase | 3φ4W+PE | |||||||||||||
| OUTPUT | Capacity (KVA/KW) | 10月8日 | 20/16 | 30/24 | 40/32 | 50/40 | 60/48 | 80/64 | 100/80 | 120/96 | 160/128 | 200/160 | 300/240 | 400/320 |
| Phase | 3φ4W+PE | |||||||||||||
| Voltage (Vac) | L－N：220/230±1％, L-L:380/400±1％, or L－N：120/127±1％, L-L:208/220±1％ | |||||||||||||
| Frequency(Hz) | 50/60±0.5% (battery mode) | |||||||||||||
| Waveform | Pure sine wave, THD≤3% (linear load) | |||||||||||||
| 3 Phases 100％ Load Unbalance Voltage Stability | ≤2%，allow 100％ unbalance | |||||||||||||
| Overload | 110％load for 30 mins, 125％load for 10 mins, 150％load for 1min. | |||||||||||||
| BATTERY | Voltage (Vdc) | 12V×29=348 | ||||||||||||
| BATT Type | External | |||||||||||||
| Charger Current(A)Max | 10~40A setting | 20~80A setting | ||||||||||||
| Battery Self-testing | Automatically alarm and estimate battery status in battery abnormal status | |||||||||||||
| OTHER | Maintenance Bypass | 3 phase + N + G | ||||||||||||
| Communication Interface | 380V ± 1% ( stable loaded ) | |||||||||||||
| Display | 50Hz ± 5% ( supply from grid ) 50Hz ± 0.05% ( supply by battery) | |||||||||||||
| Alarm | 0.8 ( lag ) | |||||||||||||
| Protection | sine wave | |||||||||||||
| Noise (dB) | linear load < 3% nonlinear load < 5% | |||||||||||||
| Working Temperature | ±5% ( from 0 to 100% ) | |||||||||||||
| Relative Humidity | < ±3% < ±1% ( balance voltage loaded ) | |||||||||||||
| Relative Humidity | 500×800×1180 | 800×800×1600 | 1000×800×1800 | 1800×800×2000 | 2200×1000×2000 | |||||||||
| Weight(Kg) | 195 | 240 | 290 | 450 | 470 | 490 | 690 | 725 | 775 | 905 | 1700 | 2350 | 2580 | |
